Multifunctional Sealing & Anti-Loosening Screw for EV Drive-Housing Sealing Faces

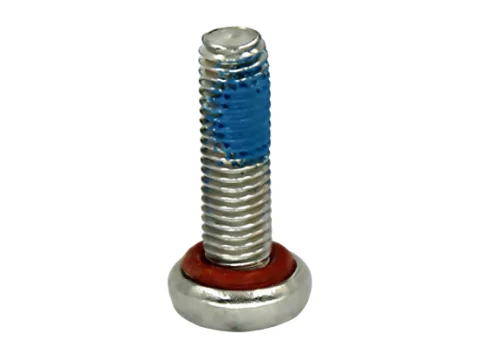

Sealing face detail of the multifunctional screw: the pre-applied coating fills the thread clearance while the bearing face is sealed separately.

Key specifications

MaterialSpring Steel 65Mn / Stainless Steel 304
Installationthreaded in, coating filling the clearance
StandardGB/T 197, GB/T 4208 (IP rating)
Typical substratehousing threads and end caps
Key inspectionsleak tightness, coating coverage, prevailing torque

Request a quote Request samples

Product overviewOverview

This is static sealing for modest pressures and joints that are not opened often. Pre-applied sealant is sheared as the screw engages, fills the helical clearance and then cures in place. Sealing depends on the coating being continuous around the full circumference; an interrupted bead leaves a channel along the thread.

Material: Spring Steel 65Mn / Stainless Steel 304. It is threaded in so the coating fills the thread clearance.

Key featuresFeatures

The bead must be continuous around the circumference, not just along the length.
Applied in production, so the assembly line needs no sealant and no cure wait.
Several sealant grades for coolants, oils and gases.
Stainless or nickel-plated steel for housing and end-cap joints.

Typical applicationsApplications

EV drive unit housings
Hydraulic valve and pump bodies
Pneumatic end caps

Selection notesSelection

Do not solvent-clean the thread before assembly; residue interferes with adhesion.

Frequently asked questionsFAQ

Why does the bead have to be continuous?

The thread clearance is a helical channel. One break in the bead is enough for pressure to escape along that path, so coverage is inspected around the circumference as well as along the length.

What matters during installation of the Multifunctional Sealing & Anti-Loosening Screw?

Thread it in so the coating fills the thread clearance. The bead must be continuous around the circumference, not just along the length.

Specifications

Material	Spring Steel 65Mn / Stainless Steel 304
Surface Treatment	Zinc-plated / Black oxide
Standard	GB/T 197, GB/T 4208 (IP rating)
Installation	threaded in, coating filling the clearance
Typical substrate	housing threads and end caps
Key inspections	leak tightness, coating coverage, prevailing torque

Manufacturing and inspection

Pressure test at 1.5 times working pressure, watching for decay or seepage.Alternative materials and finishes can be quoted side by side during sampling, so cost and corrosion resistance can be traded off explicitly.
