Aluminum Alloy Sleeves
Aluminium structural bushing: it carries clamp load through

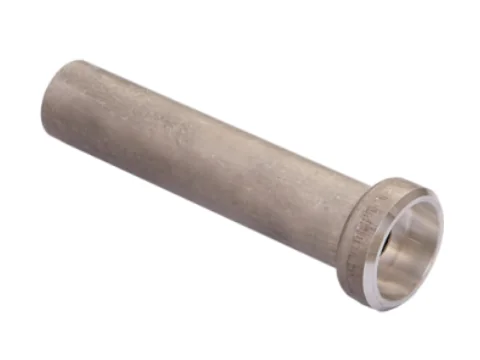

High-Strength Aluminum Alloy Structural Bushings
- Material6061-T6 Aluminum Alloy
- Installationbolt passes through the sleeve for spacing
- StandardGB/T 3191 (aluminium bar), customer drawing
- Typical substratebattery packs and lightweight structures
- Key inspectionsbore, length, compressive load
Product overviewOverview
6061-T6 reaches roughly 290–310 MPa tensile and 240–275 MPa yield — well below steel — so wall thickness must be sized from compressive stress, not copied from a steel design. A bushing in a structural joint is a compression member, so the wall is checked for crush and, where the sleeve is long relative to its wall, for stability. Aluminium has about a third of the modulus of steel and buckles earlier at the same slenderness, which is why the length to diameter ratio matters as much as the wall thickness.
Material: 6061-T6 Aluminum Alloy. The bolt passes through the sleeve to set the spacing.
Key featuresFeatures
- Wall checked for stability, not only for crush.
- An anodised finish protects the aluminium and insulates it electrically from the steel members it contacts.
- Wall thickness sized from compressive stress rather than steel practice.
- Insulation or coating at steel interfaces to suppress galvanic corrosion.
Typical applicationsApplications
- Lightweight body structures
- Motor and inverter mounting isolation
- Drone and aerospace frames
Selection notesSelection
Reduce free length or add a mid-span support before increasing wall thickness; a slender sleeve fails by buckling well below its crush load.
Frequently asked questionsFAQ
When does a bushing need a stability check?
What matters during installation of the High-Strength Aluminum Alloy Structural Bushings?
| Material | 6061-T6 Aluminum Alloy |
|---|---|
| Standard | GB/T 3191 (aluminium bar), customer drawing |
| Installation | bolt passes through the sleeve for spacing |
| Typical substrate | battery packs and lightweight structures |
| Key inspections | bore, length, compressive load |
Material is verified spectrally for 6061-T6 condition and hardness.Alternative materials and finishes can be quoted side by side during sampling, so cost and corrosion resistance can be traded off explicitly.
